Heavy-Duty HDPE Ground Protection Mats for Temporary Roads and Work Platforms
Singhal Industries Private Limited is a reputable HDPE Ground Protection Mats Manufacturer, Supplier, and Exporter in India and offers mats that are engineered for the most demanding infrastructure, construction and energy, industrial and outdoor projects.
Made of high-density polyethylene these mats are reusable and help to create secure temporary access routes as well as work surfaces on soft, uneven, muddy or even sensitive soil. They spread the load of equipment over an extended area, which can help lessen rutting, soil disturbance and damage caused by repetitive moving machinery or vehicles.
HDPE ground mats can be used for construction companies, EPC companies, utility operators, events, oil and gas companies as well as industrial buyers that require reliable access without the need to construct permanent roads.
HDPE Ground Protection Mats are rigid load-distributing sheets that are used to safeguard natural or prepared surfaces from construction equipment, vehicles, pedestrian traffic, construction machinery, and construction site activities.

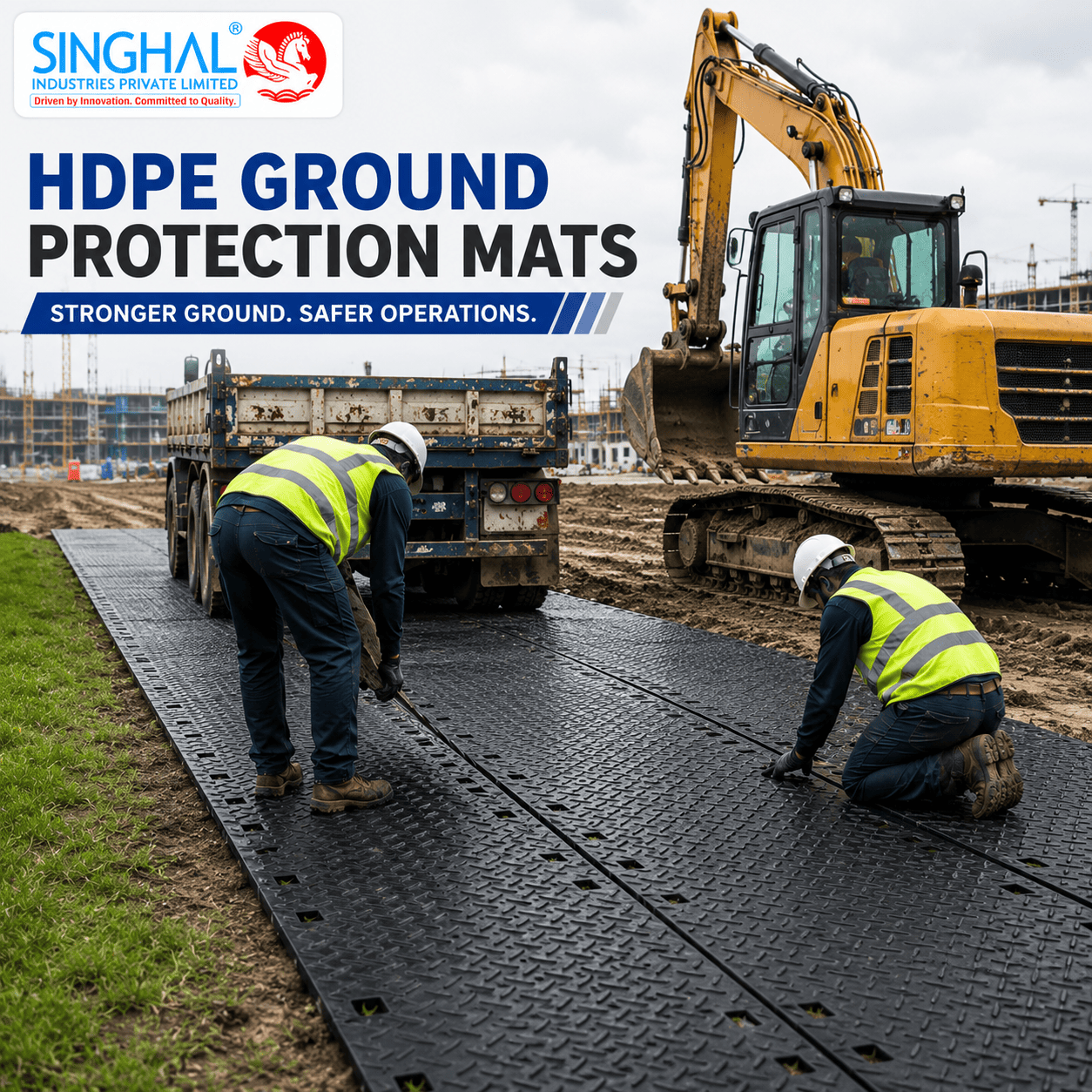

The mats are laid on grass, sand or soft soil, landscaped areas, wetlands or other unstable terrains to create temporary roads as well as walkways, work pads as well as staging zones and access routes for equipment. The mats' textured surfaces provide extra traction, while connecting points ensure the line between adjacent panels.
Contrary to flexible liners mats designed for protection are primarily to support structural surfaces and continuous traffic. Their lightweight construction when in comparison to traditional timber mats also facilitate transportation and site handling.
Heavy-Duty Composite Mats
designed to accommodate construction equipment such as temporary access roads, work platforms, and more demanding industrial tasks.
Light-Duty Ground Protection Mats
Ideal for pedestrians and landscaping, light vehicles and terrain conditions.
Textured Traction Mats
Fabricated with patterned surfaces to ensure safe mobility on muddy, wet or uneven areas.
Interlocking Ground Mats
With connection points to ensure mats are properly aligned throughout installation and use.
Custom Project Matting Solutions
Mat configuration, amount of connectors, mat layout and surface requirements can be analyzed based on the requirements of the project.
HDPE ground mats can be used to:
The quantity of mats required must be calculated based on the length of the route, dimensions of the working-area turn zones, the movement of equipment soil conditions, as well as the anticipated frequency of traffic.
Step 1: HDPE Material Preparation
The HDPE material chosen and the necessary additives are made in accordance to the mat's layout.
Step 2: Material Processing
Polymer gets heated, then processed under controlled manufacturing conditions.
Step 3: Mat Formation
The material is then shaped into the necessary heavy-duty composite structure and dimension.
Step 4: Surface Pattern Development
Traction patterns have been designed to increase pedestrian and vehicle grip.
Step 5: Connector Preparation
Eyelets, connector receivers or jointing provisions are included in the design of the mat.
Step 6: Inspection and Dispatch
Mats that are finished are inspected for dimension of the mat, surface condition, connections and general craftsmanship prior to they are shipped.
Singhal Industries Private Limited supplies polymer-based solutions for construction industrial, infrastructure, and geotechnical uses.
We have the following capabilities:
In our capacity as an HDPE Ground Protection Mats Exporter and Supplier, we help customers in evaluating mat size as well as route dimensions and equipment movements as well as surface conditions and specifications for delivery.
They can be used to construct temporary roads as work platforms, routes for equipment walkways for pedestrians and safeguarding surfaces for the ground that is soft or spongy.
Heavy-duty mats are made for machinery and construction vehicles However, the system should be chosen in accordance with the load of the equipment and the ground conditions.
Yes. They can be removed, cleaned, moved and reused if properly placed and treated.
They could help reduce direct contact between tyres as well as rutting and damage to surfaces. The duration of use and the moisture in the ground should be considered.
Yes. temporary access to the unstable and muddy terrain is among the most important applications.
Based on the design mats could use bolt connectors or receiver points, eyelets or any other compatible joining method.
HDPE is extremely low in absorption of moisture, and mats don't decay when exposed to moist ground.
Textured surfaces increase traction, but safe operation depends on the slope, mud, weather conditions, maintenance and the speed of the vehicle.
Mats for ground protection provide protection against pressure of traffic. On the other hand, the geomembrane provides a barrier or a containment liner.
No. LDPE sheets cannot be considered as an alternative to the mats because they are flexible while the mats are rigid.
They are utilized in construction sites and utility projects, as well as locations for oil and gas pipelines, special events, transmission projects and renewable energy locations.
The amount depends on the area of mats that can be used, the route width, length, turning zones, work pads, as well as the layout of connections or overlap.
Yes, but provided that the parameters fall within acceptable levels. Large voids, obstacles, and grade changes need to be considered prior to installation.
Buyers must provide the site's conditions, coverage requirements and equipment type, the maximum load, duration and location, as well as the quantity and connector specifications.
Consider the physical properties of the material and connector size.
| Ground Condition | Suitability |
| Muddy Construction Ground | Excellent |
| Soft Soil | Excellent |
| Grass and Turf | Very Good |
| Sand | Very Good |
| Gravel | Good |
| Finished Hardscape | Application Specific |
Evaluation of the site is still necessary since performance is dependent on the strength of subgrade and equipment load, as well as turning motion mat layout, drainage and the quality of installation.
| Property | HDPE Ground Protection Mats | Geomembrane |
| Primary Purpose | Surface protection and ground support | Vapour and fluid containment |
| Product Form | Rigid reusable panels | Flexible liner available in rolls |
| Vehicle Movement | This design was created to be temporary routes for traffic | Not intended to be a traffic platform |
| Load Distribution | High | Limited structural distribution |
| Installation | The lair and the mechanically joined | Seamed and unrolled |
| Reusability | Most often, they can be reused. | Most often, they are permanently installed |
| Typical Use | Roads for access and pads to work | Landfills, ponds, and containment zones |
HDPE mats for ground are best used for projects that require traffic-able support for the surface. Geomembrane flooring is better in situations where the primary requirement is protection, containment or separation.
| Property | HDPE Ground Protection Mats | LDPE Sheets |
| Material Structure | Heavy-duty and rigid | Lightweight and flexible |
| Load Support | Ideal for access to equipment | Not intended for high load distribution |
| Surface Protection | High under traffic | Most suitable for use as a flexible cover |
| Traction | Textured mat surface | Generally, smooth sheet surface |
| Installation | Connection via panel | Roll or sheet placement |
| Reuse Potential | High, with the right handling | It depends on the thickness and application |
Sheets made of LDPE are ideal as linings, coverings and packaging, as well as moisture barriers and general protection. HDPE mats for ground are the best alternative when machinery, frequent road traffic or temporary performance is needed.
Construction Industry
Useful to create temporary access to cranes excavators, trucks loaders, and other site personnel.
Oil and Gas Projects
It is suitable as a temporary route, access to rigs and staging equipment pipeline work, as well as operations in unstable or remote places.
EPC and Infrastructure Projects
Useful to transfer power and utility installation and maintenance, civil construction and transportation of material.
Renewable Energy Projects
It provides temporary access to equipment that is used in solar, wind, and remote energy installations.
Landscaping and Ground Maintenance
Guards turf, lawns, parks, areas that are landscaped, as well as soft ground during construction or maintenance.
Events and Temporary Facilities
Useful for pedestrian pathways for access to vehicles, pedestrian paths for vehicles, flooring that is portable temporary structures, and routes for service.
| Property | Specification |
| Material | High-Density Polyethylene |
| Mat Construction | Heavy-duty composite design |
| Shipping Length | Approximately 4.34 m |
| Shipping Width | Approximately 2.29 m |
| Usable Length | Approximately 4.11 m |
| Usable Width | Approximately 2.06 m |
| Nominal Thickness | 100 mm |
| Approximate Weight | 385 kg +-10 kg |
| Surface | High-traction pattern on the surface |
| Connector Provision | Eyelets and Bolt connectors |
| Temperature Rating | Approximately -40degC to 60degC |
| Compressional Strength | Up to 600 PSI |
| UV Protection | Available |
| Standard Color | Deep yellow |
The specifications published are for the heavy-duty mats listed. Buyers should verify dimensions, load conditions, connector specifications, and project compatibility prior to making an offer.
| Uses | Suitable Mat Type Requirement |
| Walkway for pedestrians | Light-duty mats or those for project uses |
| Ground equipment for landscaping | Protection of surfaces with medium-duty |
| Construction Vehicles | Mats with heavy-duty connections |
| Crane or Rig Access | Mats that are designed to last. |
| Temporary Site Roads | Constructed interconnected roads |
| Sensitive Ground | Greater coverage and controlled access |
