Producers and vendors of Biaxial Geogrid across India | Exporters of Biaxial Geogrid
Superior Quality Biaxial Geogrid for Soil Stabilization, Road Construction and Ground Reinforcement
Singhal Industries Private Limited is a trusted Biaxial Geogrid Manufacturer in India with products covering roads, highways, railways, parking areas, embankments, foundations, retaining structures, industrial yards and infrastructure projects.
The Biaxial Geogrid is designed to be strong in both longitudinal and transverse directions. It is well suited for applications where long-term performance of the project depends on load distribution, soil stabilization, aggregate interlock and reinforcement of the base.

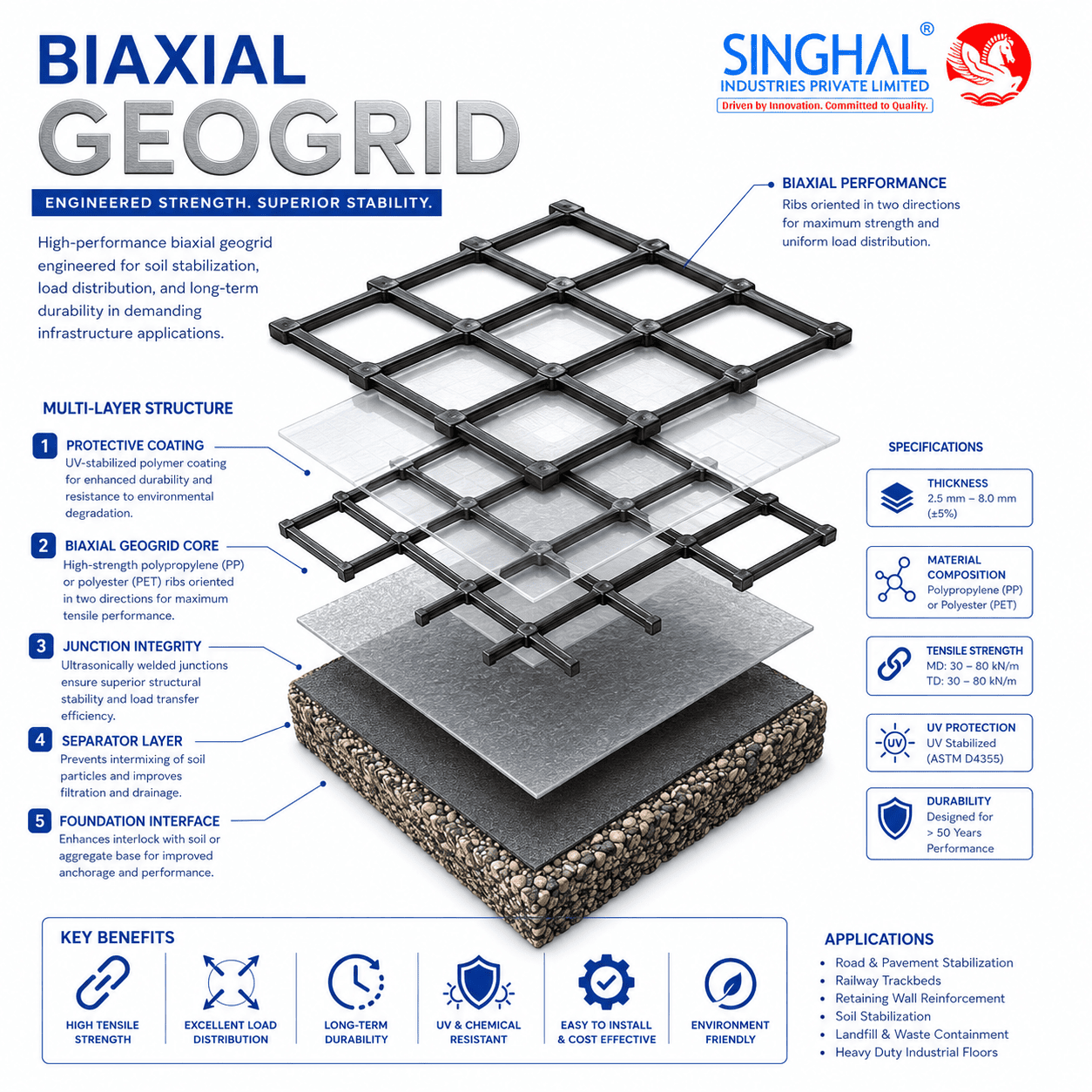

Biaxial Geogrid is a poly Grid which is made to strengthen the soil and aggregate layers. It is an open grid with ribs and apertures to help granular material become locked in the grid.
Biaxial Geogrid is primarily designed to spread loads in two directions. Installed beneath roads, pavements, yards or foundation layers to help mitigate lateral movement of the aggregates and enhance stability of weak subgrades.
Biaxial Geogrid has a primary mechanism of action: mechanical interlock, which is different from flat separation materials. The particles of the aggregate hold onto the openings of the grid, which makes for a firmer and more stable subbase layer.
PP Biaxial Geogrid
It is used for stabilizing road bases and pavement reinforcement, parking spaces as well as general civil engineering purposes.
HDPE Biaxial Geogrid
It is suitable for ground reinforcement such as embankments, industrial yards, access roads, as well as the most demanding site-related applications.
Polyester Biaxial Geogrid
Utilized when polyester-based reinforcement is the preferred choice to be used in specific road, pavement or soil stabilization plans.
Road Reinforcement Geogrid
Created for roads, interior roads and haulways service roads, as well as subgrade areas with weak foundations.
Custom Biaxial Geogrid
Made to order for length, width and thickness, as well as material and the strength grade.
Biaxial Geogrid can be found in a variety of standard and custom configurations:
Customized thickness, roll length as well as roll width, aperture size, and grade of strength can be provided depending on the soil condition and traffic load and aggregate size, strength of subgrade and the design of the project.
In Singhal Industries Private Limited, Biaxial Geogrid is manufactured with an eye on the quality of the material and consistency of apertures as well as tensile strength. The ability to form a roll on site.
Step 1: Raw Material Selection
Depending on the job and its requirements, the best fit among HDPE, PP, Polyester, or other polymer-based options is selected.
Step 2: Sheet or Rib Formation
The material is then processed to form a structure that is controlled for grid construction and reinforcement performance.
Step 3: Aperture Formation
The grid is designed to allow openings within the grid in order to permit the installation of a strong aggregate interlock.
Step 4: Biaxial Orientation
The grid is designed in two directions, allowing for the development of the strength of tensile across both the transverse and longitudinal axes.
Step 5: Roll Conversion
Completed Biaxial Geogrid is transformed into rolls to facilitate transport, handling and even installation.
Step 6: Quality Checking & Packing
Rolls are inspected for uniformity of aperture size and thickness. They are also checked for the consistency of strength, and are safe packing for delivery.
Singhal Industries Private Limited is an experienced Biaxial Geogrid Supplier, Biaxial Geogrid Supplier, and Biaxial Geogrid Exporter that provides geosynthetic products for road construction railways, foundations, railways parking areas, embankments and industrial infrastructure projects.
Our strengths are:
We are focused on providing reliable Biaxial Geogrid options for builders, EPC companies, road developers, civil engineers, oil and gas projects, as well as industrial buyers.
Biaxial Geogrid can be used to stabilize soil roads, road construction rail base supports, parking spaces foundations, embankments as well as industrial yards.
Biaxial Geogrid offers the strength across two directions, namely longitudinal as well as transverse.
Biaxial Geogrid is made out of PP, HDPE, Polyester or any other polymer-based substances.
Yes, it's widely used to stabilize the road base as well as subgrade improvements as well as pavement strengthening.
It locks with aggregates and distributes loads over more of the area, helping increase the stability of the soil and base layer.
Biaxial Geogrid provides strength in two directions. Uniaxial Geogrid provides higher strength predominantly in one direction.
Biaxial Geogrid is a reference to the strength in two directions, whereas Polyester Geogrid describes the type of material.
Yes, because it can be used to prevent rutting due to load distribution and aggregate confinement.
Yes, because the Biaxial Geogrid comes in rolls and can be easily installed between layers of aggregates and soil.
It is black, but the color can be adjusted according to the customer’s needs.
The thickness can vary from 1 mm up to 30 millimeters or be made according to the requirements of the customer.
The width of the roll can be provided as high as 3.8 meters, and the length of the roll up to 100 meters according to the product's grade.
Yes, the thickness, material and roll size, as well as aperture structure and the strength grade can be altered.
Road construction companies, EPC companies, civil engineers, railway contractors, industrial buyers, geotechnical consultants and infrastructure developers make use of Biaxial Geogrid.
The choice depends on ground characteristics, traffic loading, aggregate dimensions, the bearing capacity of the subgrade and where it will be used, the roll dimensions, and the stated project requirements.
| Site Condition | Performance Level |
| Weak Soil Stabilization | Excellent |
| Load Distribution | Excellent |
| Road Base Reinforcement | Excellent |
| Aggregate Interlock | Excellent |
| Rutting Reduction | Good |
| Railway Base Support | Good |
| Installation Handling | Excellent |
| Property | Biaxial Geogrid | Uniaxial Geogrid |
| Strength Direction | Two directions | One of the primary directions |
| Main Function | Stabilization of the base as well as load distribution | Resilient soil reinforcement in the direction of the. |
| Best Use | Roads pavements, parking areas, roads platforms | Retaining walls and slopes, embankments |
| Grid Action | Aggregate interlock in both directions | Refrain from pulling in one primary direction |
| Load Support | Multi-directional | Directional |
| Common Buyer Need | Subgrade upgrade | Reinforcement of slope or wall |
| Project Suitability | Road foundation and base layers | Reinforced soil structures |
Biaxial Geogrid is a good choice for projects that require load distribution across both directions. Uniaxial Geogrid is best in cases where the design needs solid tensile reinforcement only in one direction.
| Property | Biaxial Geogrid | Polyester Geogrid |
| Classification | A product based on strength direction | Material-based products |
| Material | Polyester, HDPE, PP alternatives | Polyester-based |
| Strength Direction | Two directions | Depends on product design |
| Common Use | Road base stabilization, subgrade support | Asphalt reinforcement, soil reinforcement, pavement works |
| Installation Area | Aggregate layers and soil | Geotechnical layers or pavement |
| Main Benefit | Multi-directional load distribution | Performance of reinforcements that are specific to the material |
| Best For | Interlocking aggregates and base stabilization | Projects that specify polyester reinforcement |
Biaxial Geogrid is chosen when support for two-directional loads is the most important requirement. Polyester Geogrid is chosen whenever design requirements call for polyester reinforcement.

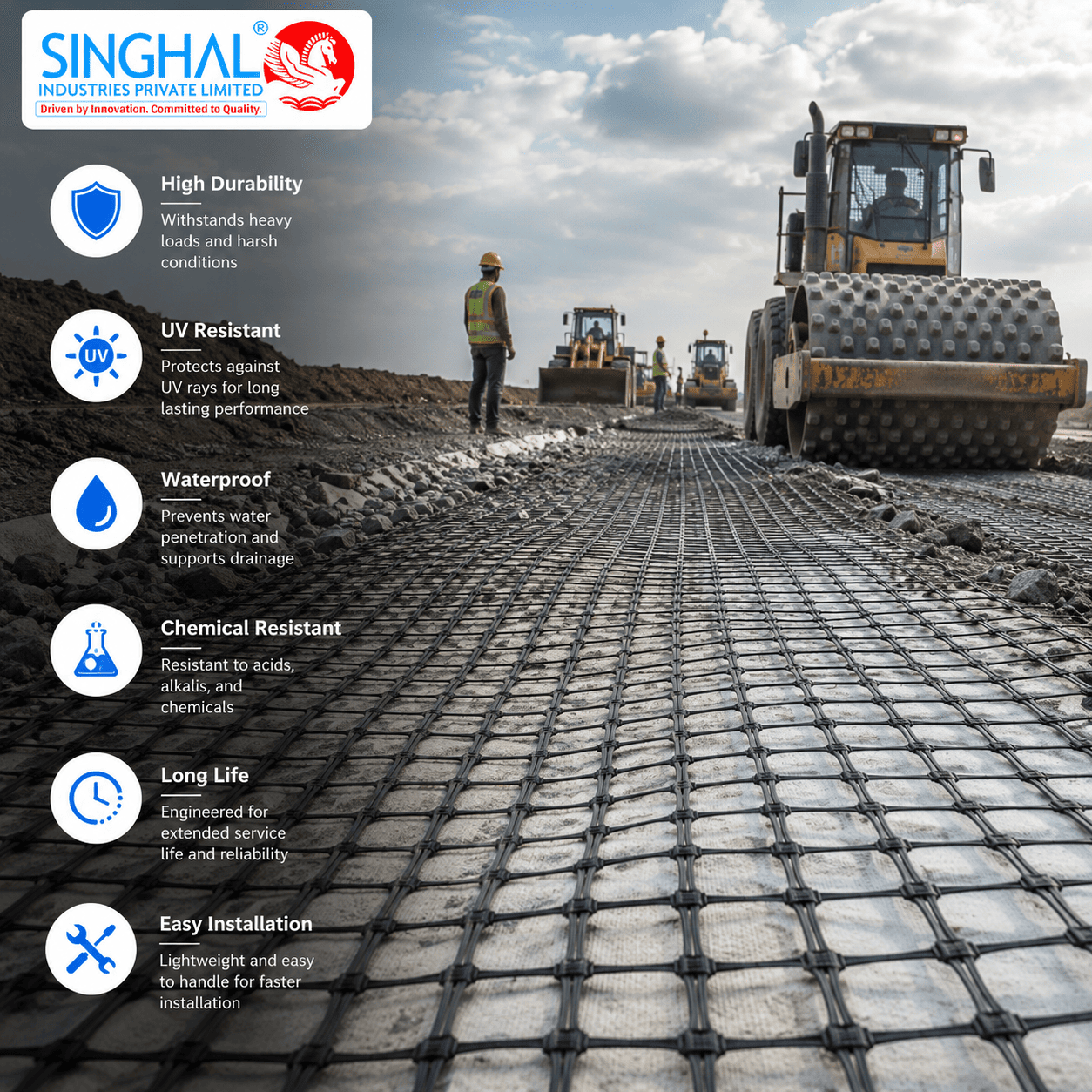

Road Construction
Utilized below road bases and sub-bases to increase aggregate interlock, prevent the risk of rutting, and help with load distribution.
Highways & Expressways
In heavy-traffic roadways in which long-term stability of the pavement and subgrade support is important.
Railways
It is used below ballasts for railways and track-bed layers for stabilization and limit deformation.
Parking Areas & Industrial Yards
It works well in container depots, logistics hubs, loading areas, parking lots, and other places with intense movement.
Embankments & Foundations
Aids in improving the soil's performance in embankments foundations, platforms, embankments and approaches roads.
Oil & Gas & Infrastructure Projects
These roads are used for access roads as well as plant roads, farms, pipeline routes and also in permanent or temporary industrial roads.
| Property | Specification |
| Product | Biaxial Geogrid |
| Material | PP / HDPE / Polyester |
| Structure | Open grid reinforcement structure |
| Strength Direction | Two directions |
| Thickness | 1 up to 30 mm, or as needed |
| Color | Mostly black |
| Roll Width | up to 3.8 meters |
| Roll Length | Up to 100m |
| Function | Soil stabilization, load distribution, base reinforcement |
| Application | Railways, roads and parking areas. Embankments foundations, embankments industrial sites |
| Customization | Material Size, thickness, size of roll the strength grade, and the project specifications |
| Application | Recommended Geogrid Type |
| Road Construction | PP Biaxial Geogrid |
| Weak Subgrade | High-strength Biaxial Geogrid |
| Industrial Yard | HDPE Biaxial Geogrid |
| Railway Base | Heavy-duty Biaxial Geogrid |
| Parking Area | Road stabilization Geogrid |
| Pavement Reinforcement | Project-specific Biaxial Geogrid |
| Custom Project | Geogrid grade based on design |
